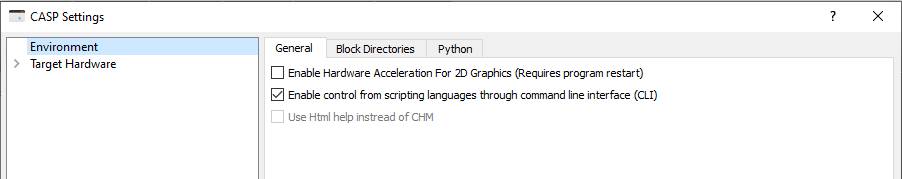

General
|
Name |
Description |
|
Enable Hardware Acceleration For 2D Graphics |
Check this option to enable hardware acceleration for 2D graphics windows such as CASP workspace window, Block Image Editor, Block Schematics Configuration and Block Library Viewer windows. |
|
Enable control from scripting languages through command line interface (CLI) |
Check this option to control CASP from other applications such as Python through command line interface. This option is enabled by default. |

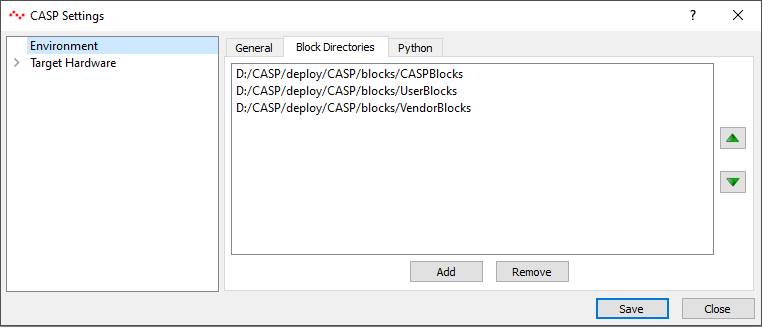

Block Directories
|
Description |
|
This interface can be used to add/ remove block directories where CASP searches for blocks from Block Library Viewer . |

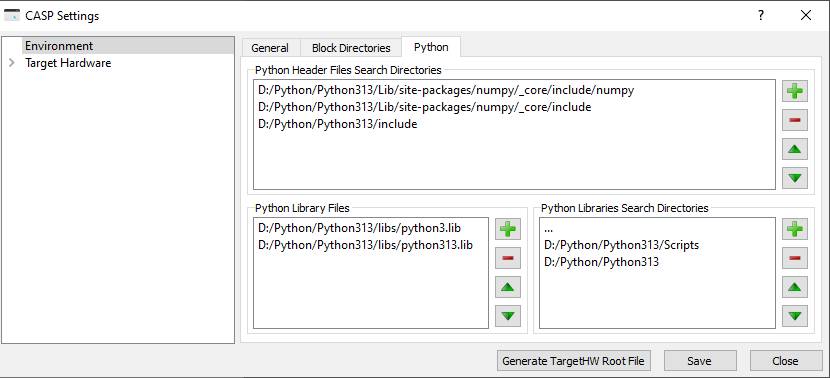

Python Settings
|
Description |
|
This interface can be used to add/remove python related headers, library and libraries search directories. Currently options in this page are for future use only. For setting up Python paths for each target, please refer to similar options under Setup Simulation Parameters -> Target HW -> General -> Set Target Python Paths . |
